Dispersion Compensate Fiber Grating Module
Product Description
This Dispersion Compensator is based on Fiber Bragg Grating technologies. It’s design and builds for the 10Gbit/s and 40Gbit/s Long Haul or Metro network system.

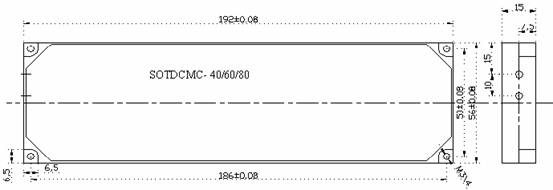

Outline and Packing

Applications

SDH, DWDM, AON
Lab R&D

Features

Mini packing, passive temperature compensation, integrated with the Circulator or Coupler
Very small Delay Jitter
Excellent temperature stability
The design and build meet the Telcordia GR-1209 and GR-1221.

Specification

Parameter

Unit

Specification

Channel Space

GHz

100

Reflect
Port

Band Width @-0.5 dB

nm

>0.35

Insertion Loss
Circulator Integrated

dB

<1.5

Coupler Integrated <7

Dispersion

Ps/nm

40Km: 680+5%
60Km: 1020+5%
80Km: 1360+5%

DelayJitter@-0.5 dB bandwidth

ps

< ± 15

PDL

dB

< 0.3

PMD

ps
< 1

Temp Dependent Wavelength Shift

nm/80C

+0.08(Max)

Operation Temp

C

- 5 ~ + 70

Storage Temp

C

- 40 ~ + 85

Fiber Type

-

SMF - 28
Packing Dimension
mm
192×56×15
Ordering Information       SOTDCMC

SOTDCMC—








Compensation Distance as 40?60?80Km or specified

ITU Channel as 1550.12nm(34) Fiber Length Connector
A=None
B=FC/PC
C=SC/PC
D=Other
For example: SOTDCMC-80341C rep CW is 550.12nm,with coupler & SC/PC connector, compensation distance is 80Km module,1m SMF-28 fiber pigtail.

We can design per your specific requirements
