Dispersion Compensate Fiber Grating Components

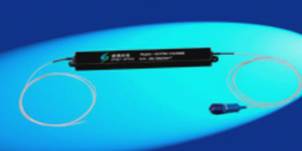

Product Description
This Dispersion Compensator is based on Fiber Bragg Grating technologies. It’s design and builds for the 10Gbit/s and 40Gbit/s Long Haul or Metro network system.

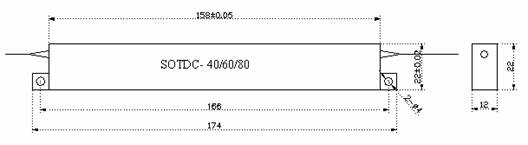

Packing Dimension

Applications

SDH, DWDM, AON
Lab R&D

Features

Mini packing, passive temperature compensation
Very small Delay Jitter
Excellent Temperature Stable feature
Telcordia GR-1209 and GR-1221 Compliance

Specification

Parameter

Unit

Specification

Channel Space

GHz

100

Reflect
Port

Band Width@-0.5 dB

nm

0.4(Min)

Insertion Loss

dB

0.8(Max)

Dispersion

Ps/nm

40Km: 680+5%
60Km: 1020+5%
80Km: 1360+5%

Delay Jitter @ -0.5 dB bandwidth

ps

± 15(Max)

Reflectance

%

95(Min)

PDL

dB
< 0.2

PMD

ps

< 1
Wavelength Dependent Shift
nm/80C
< 0.08

Operation Temp

C

- 5 ~ + 70

Storage Temp

C

- 40 ~ + 85

Fiber Type

-

SMF - 28
Packing Dimension
mm
174×22×12
Ordering Information       SOTDC40/60/80

SOTDC—








Compensation distance as 40?60?80 Km or specified

ITU Channel 1550.12n(34) and so on Fiber Length Connector
A=None
B=FC/PC
C=SC/PC
D=Other
For example, SOTDC-80341C rep the CW is 1550.12nm,80Km compensation distance module, with SC/PC connector and 1m fiber.

We can design for you per your specific requirements
