16-Channel 100GHz DWDM Module
Features

Epoxy Free
Low Insertion Loss
High Reliability and Stability
Polarization Independent
Applications

DWDM Transmission System
Optical Fiber Device
Optical Fiber Amplifier System
Wideband Networks
Specifications

Item

Unit
Parameter
Mux Demux
Center Wavelength (lc)
nm
ITU Channel±0.06
0.5dB Pass Band
nm
0.38
Typ. Insertion Loss
dB
5.2
Max. Insertion Loss
dB
5.8
Max. Channel Uniformity@lc
dB
1.5
Min. Wavelength Isolation between Adjacent Channels
dB
N/A
25
Min. Wavelength Isolation between Non-adjacent Channels
dB
N/A
40
Min. Directivity
dB
55
Max. Polarization Dependent Loss
dB
0.15
Min. Return Loss
dB
45
Max. Polarization Mode Dispersion
ps
0.2
Max. Thermal Stability dB/°C 0.008
Max. Thermal Wavelength Drift
nm/°C
0.001
Max. Optical Power
mW
250
Operating Temperature
°C
0 ~ +65
Storage Temperature
°C
-40 ~ +85
Package Dimensions
dB
S:140x114x18
G:140x114x13

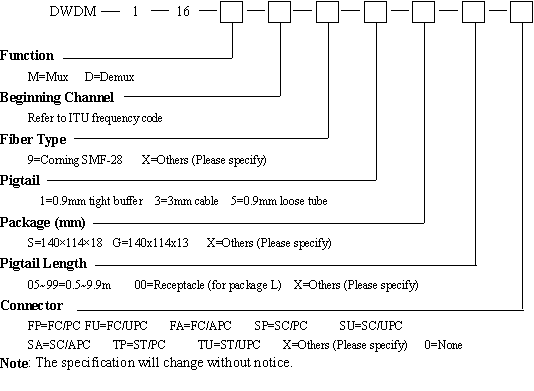

Ordering Information
