200GHz Add/Drop Module
Features

Epoxy Free
Low Insertion Loss
High Reliability and Stability
Polarization Independent
Applications

DWDM Transmission System
Optical Fiber Device
Optical Fiber Amplifier System
Wideband Networks
Specifications

Item

Unit
Parameter

Number of Add/Drop Channels

1 (2x2)
2 (3x3)
4 (5x5)
Add/Drop Center Wavelength (lc)
nm
ITU Channel±0.1
-0.5dB Bandwidth
nm
0.78
-25dB Bandwidth
nm
2.3
Typ. Add/Drop Insertion Loss@lad
dB
0.7
1.1
2.0
Max. Add/Drop Insertion Loss@lad
dB
1.0
1.4
2.3
Typ. Remain Insertion Loss@lp
dB
0.8
1.8
3.3
Max. Remain Insertion Loss@lp
dB
1.2
2.2
3.7
Min. Adjacent Isolation
dB
25
Min. No-Adjacent Isolation
dB
40
Min. Directivity
dB
50
Max. Polarization Dependent Loss
dB
0.1
Min. Return Loss
dB
45
Max. Thermal Stability
dB/°C
0.004
0.006
0.007
Max. Thermal Wavelength Drift
nm/°C
0.002
Max. Optical Power
mW
250
Operating Temperature
°C
0 ~ +65
Storage Temperature
°C
-40 ~ +85
Package Dimensions
dB
O:100x80x9
L:120x80x18
P:136x100x12
S:140x114x18
G:140x114x13

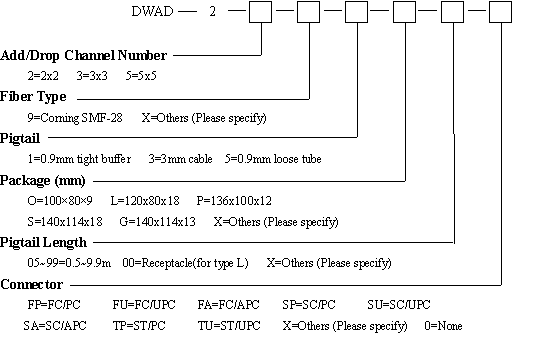

Ordering Information
