Multi-Mode 1X2/2X2 Fiber Splitter and Tree Splitters

Features

ALL fiber construction
High Reliability
Outstanding Optical Performance
Different Fiber Types Available
Telcordia GR-1209-CORE and GR-1221-CORE Conformed

Applications

Fiber To The Home (FTTH)
Local Loop
Passive Optical Networks (PON)
Fiber Optic CATV
Fiber Optic Test Equipment
Fiber Optic Sensing
Local Area Networks (LAN)
Specifications
1x2 and 2x2 Coupler

Parameter

Grade "P"
Grade "A"

Operating Wavelength (nm)

800---1600

Coupling Ratio (%)

50

Excess Loss (Typ.) (dB)

0.7
1.0

Max Insertion Loss (dB)

4.0
4.5

Max. Uniformity (dB)

0.5
0.9

Operating Temperature (C)

-20 ~ +75

Storage Temperature (C)

-40 ~ +85
Package Dimensions (mm)
C:Ø3.0x54(250um fiber)
F: Ø3.5x72 (0.9mm loose tube)
M: 100x19x9
O: 100x80x9
L: 120x80x18
Star and Tree Coupler

Item

Parameter

Operating Wavelength (nm)

800-1600
Configuration 1(or 2, 4) ´4 1(or 2, 8)´8 1(or 2, 16)´16
Grade P A P A P A

Excess Loss (dB)

1.6
2.0 2.4 3.0 3.2 4.0

Max. Insertion Loss (dB)

8.2
8.9 12.3 13.4
16.4
17.8

Uniformity (dB)

1.2
1.8 1.8 2.7
2.4
3.6

Operating Temperature (C)

-20 ~ +75

Storage Temperature (C)

-40 ~ +85
Package Dimensions (mm)
O: 100x80x9
P: 136x100x12
S: 140x1914x18
T: 19" 1U rack
Note: Other splitter ratio is available per customers’ specific requirements.

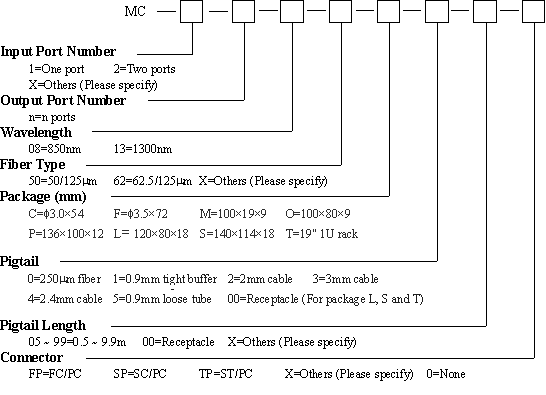

Ordering Information
