Polarization Insensitive Isolator
- Compact Ultra Wideband

Features

Compact Size
High Isolation
Low Insertion Loss
Ultra-low PDL and PMD
Low Polarization Sensitivity
High Return Loss
Environmental Stability and Reliability
Epoxy-free Optical Path

Applications

Fiber Optic Amplifier
Fiber Laser Equipment/Transmitter
CATV
Optical Instrument
Fiber Optic Network System
WDM System
Laboratory R&D

ISBDU Series*

Premium

Grade A

Operating Wavelength Range (nm)

1400 ~ 1650

Crossband Isolation

> 28 dB

> 25 dB

Insertion Loss

< 1.0 dB

< 1.2 dB

Polarization Dependent Loss

< 0.1 dB

< 0.15 dB

Polarization Mode Dispersion

< 0.05 ps

< 0.05 ps

Optical Return Loss

> 60 dB

> 55 dB

Temperature Sensitivity

< 0.005 dB/°C

Max. Optical Power

300 mW

Operating Temperature

0 ~ +70°C

Storage Temperature

-40 ~ +85°C

Fiber Type

Corning SMF-28

Max. Tensile Load

5 N

Package Design

Gold-Plated Stainless Steel Tube

Dimension

f = 4.30 mm, L = 27 mm


Target parameters are referenced without connectors.

* Patent pending

Reliability Performance

Mechanical Test: Telcordia  (GR-1209-CORE, GR-1221-CORE, and GR-2882-CORE) compliant.
Endurance Test: Telcordia (GR-1209-CORE, GR-1221-CORE, and GR-2882-CORE) compliant.

Details provided upon request.

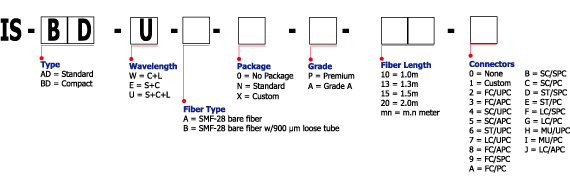

Ordering Information
