Polarization
Insensitive Isolator
- Standard Ultra Wideband
|

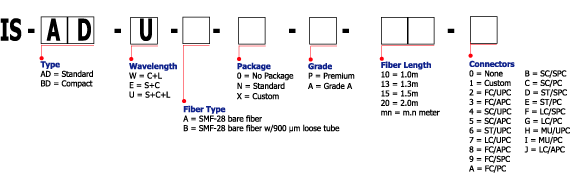

ISADU
Series |
Premium
|
Grade
A |
| Operating Wavelength
Range* |
1400 ~ 1650
nm |
| Crossband Isolation
|
> 28 dB |
> 25 dB |
| Insertion Loss |
< 1.0 dB |
< 1.2 dB |
| Polarization Dependent
Loss |
< 0.1 dB
|
< 0.15 dB |
| Polarization Mode Dispersion
|
< 0.05 ps
|
< 0.05 ps |
|
Optical Return Loss |
> 60 dB |
> 55 dB |
|
Temperature
Sensitivity |
<
0.004 dB/°C |
| Max. Optical Power
|
300 mW |
| Operating Temperature
|
0 ~ +70°C
|
| Storage Temperature
|
-40 ~ +85°C
|
| Fiber Type |
Corning
SMF-28 |
| Package Design |
Stainless
Steel Tube |
| Dimension |
f = 5.5
mm, L = 30.5 mm |
Reliability Performance
Mechanical Test:
Telcordia (GR-1209-CORE, GR-1221-CORE, and
GR-2882-CORE) compliant.
Endurance Test: Telcordia (GR-1209-CORE, GR-1221-CORE,
and GR-2882-CORE) compliant.
Details provided upon request.
Target parameters are referenced without connectors. |
