Polarization
Insensitive Isolator -
Standard S & C Wideband
Features
High Isolation Low Insertion Loss Ultra-low PDL and PMD
Low Polarization Sensitivity High Return Loss
Environmental Stability and Reliability Epoxy-free Optical Path
Applications
Fiber Optic Amplifier Fiber Laser Equipment/Transmitter CATV Optical Instrument Fiber Optic Network System WDM System Laboratory R&D

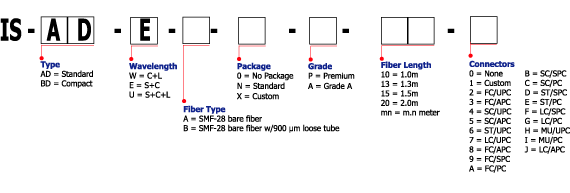

ISADE
Series
Premium
Grade A
Operating Wavelength Range
1450 ~ 1580
nm
Crossband Isolation
> 45 dB
> 40 dB
Insertion Loss
< 0.5 dB
< 0.7 dB
Polarization Dependent
Loss
< 0.1 dB
< 0.15 dB
Polarization Mode Dispersion
< 0.05 ps
< 0.05 ps
Optical Return Loss
> 60 dB
> 55 dB
Temperature Sensitivity
<
0.004 dB/°C
Max. Optical Power
300 mW
Operating Temperature
0 ~ +70°C
Storage Temperature
-40 ~ +85°C
Fiber Type
Corning SMF-28
Max. Tensile Load
5
N
Package Design
Stainless Steel
Tube
Dimension
f = 5.5 mm,
L = 30.5 mm
Reliability Performance
Mechanical Test: Telcordia (GR-1209-CORE,
GR-1221-CORE, and GR-2882-CORE) compliant.
Endurance Test: Telcordia (GR-1209-CORE, GR-1221-CORE,
and GR-2882-CORE) compliant. Target parameters are
referenced without connectors.
High Isolation
