Polarization Insensitive Isolator -
Standard Single Stage

Features

High Isolation
Low Insertion Loss
Ultra-low PDL and PMD
Low Polarization Sensitivity
High Return Loss
Environmental Stability and Reliability
Epoxy-free Optical Path

Applications

Fiber Optic Amplifier
Fiber Laser Equipment/Transmitter
CATV
Optical Instrument
Fiber Optic Network System
WDM System
Laboratory R&D

ISAS Series *

Premium

Grade A

Operating Wavelength Range (nm)

1310

Minimum  Isolation (wavelength ± 20nm, 23°C)

> 30 dB

> 25 dB

Minimum  Isolation (wavelength ± 20nm, 0 ~ +70°C)

> 22 dB

> 18 dB

Insertion Loss (wavelength ± 20nm, 23°C)

< 0.3 dB

< 0.4 dB

Insertion Loss (wavelength ± 20nm, 0 ~ +70°C)

< 0.5 dB

< 0.6 dB

Polarization Dependent Loss

< 0.05 dB

< 0.1 dB

Polarization Mode Dispersion

< 0.25 ps

< 0.25 ps

Optical Return Loss

> 60 dB

> 55 dB

Max. Optical Power

300 mW

Operating Temperature

0 ~ +70°C

Storage Temperature

-40 ~ +85°C

Fiber Type

Corning SMF-28

Package Design

Stainless Steel Tube

Dimension

f = 5.5 mm, L = 30.5 mm


ISAS Series *

Premium

Grade A

Operating Wavelength Range (nm)

1480/1550/1600

Minimum  Isolation (wavelength ± 20nm, 23°C)

> 30 dB

> 25 dB

Minimum  Isolation (wavelength ± 20nm, 0 ~ +70°C)

> 22 dB

> 18 dB

Insertion Loss (wavelength ± 20nm, 23° C)

< 0.3 dB

< 0.4 dB

Insertion Loss (wavelength ± 20nm, 0 ~ +70 C)

< 0.5 dB

< 0.6 dB

Polarization Dependent Loss

< 0.05 dB

< 0.1 dB

Polarization Mode Dispersion

< 0.25 ps

< 0.25 ps

Optical Return Loss

> 60 dB

> 55 dB

Max. Optical Power

300 mW

Operating Temperature

0 ~ +70°C

Storage Temperature

-40 ~ +85°C

Fiber Type

Corning SMF-28

Max. Tensile Load

5 N

Package Design

Stainless Steel Tube

Dimension

f = 5.5 mm, L = 30.5 mm


Reliability Performance

Mechanical Test: Telcordia  (GR-1209-CORE, GR-1221-CORE, and GR-2882-CORE) compliant.
Endurance Test: Telcordia (GR-1209-CORE, GR-1221-CORE, and GR-2882-CORE) compliant.

Details provided upon request.

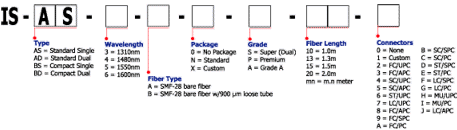

Ordering Information
